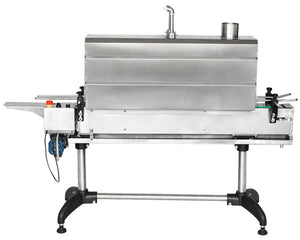

Steam tunnels are the way to go for the best results on full bottle shrink sleeves. The shrink is much more consistent and wrinkle free. The tunnel comes with a boiler (steam generator) that requires 220V 3 phase power at 12Kw. The tunnel requires 220V single phase power for the conveyor motor.
Specifications
| Model | DZBS1135 | Conveyor Speed | 0-30ft/min |
| Voltage | 220V/60hz | Dimension | 60 x 15.8 x 49.2in |
| Power | 150W | Weight | 150lbs |
| Max. Packaging Size | φ 3.15 x 11.4in | Conveyor Motor | AC120W |
| Tunnel Size | 39.4 x 3.93 x 12.6 | ||
| Max Loading | 33lbs | Shrink Film | POF,PCV,PP |
Steam Generator
Specifications
| Power | 12Kw |
| Electricity | 220V/3PH |
| Pressure | 0.4MPa |
| Volume | 27L |
| Steam Production | 16/32 kg/H |
| Weight | 200lbs |
